Presentation
| Product range | FW-S65Pro Max-R03 |
| Product type | Microscope |
Sale package
| Pack | Blister |
| Content | Microscope Accessories / Led Lamp / Microscope |
| Product status | New |

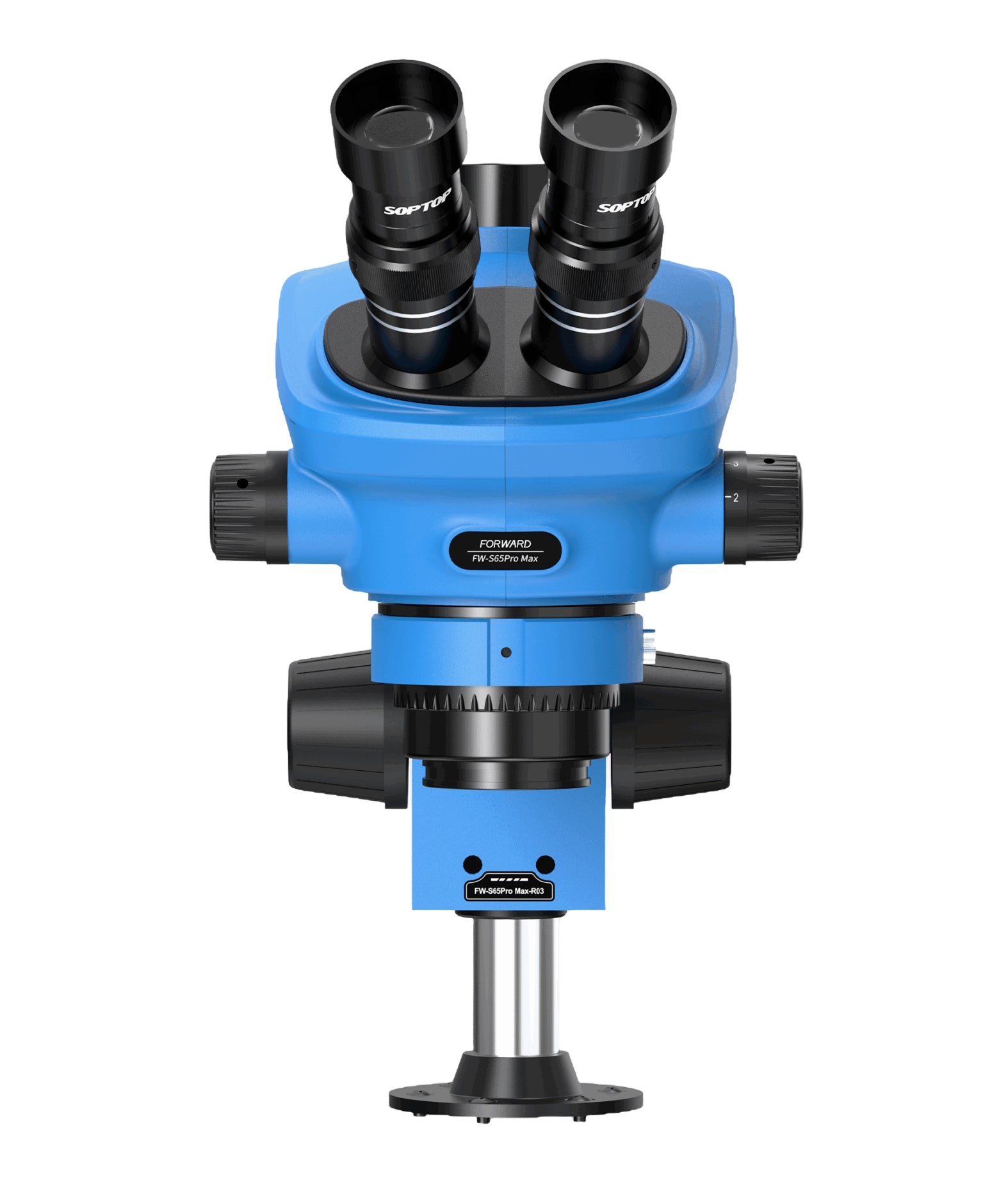

Forward FW-S65Pro Max-R03 Microscope
Forward FW-S65Pro Max-R03 is a high-performance professional microscopy system, specially designed for electronics laboratories,
GSM service centers, micro-welding, and fine industrial inspections. The main unit S65Pro Max ensures clear, three-dimensional
and extremely detailed rendering of the analyzed components, equipped with two adjustable eyepieces and dedicated comfort accessories
(eye protection, anti-dust glasses, and anti-reflection cups). For impeccable circuit visibility, the system includes the ML138 adjustable LED ring light,
precisely controlled via an intensity dimmer. Additionally, the kit contains a 0.4x CTV optical adapter,
an essential component that allows connection of a digital video camera to capture and display images on an external monitor in real time.

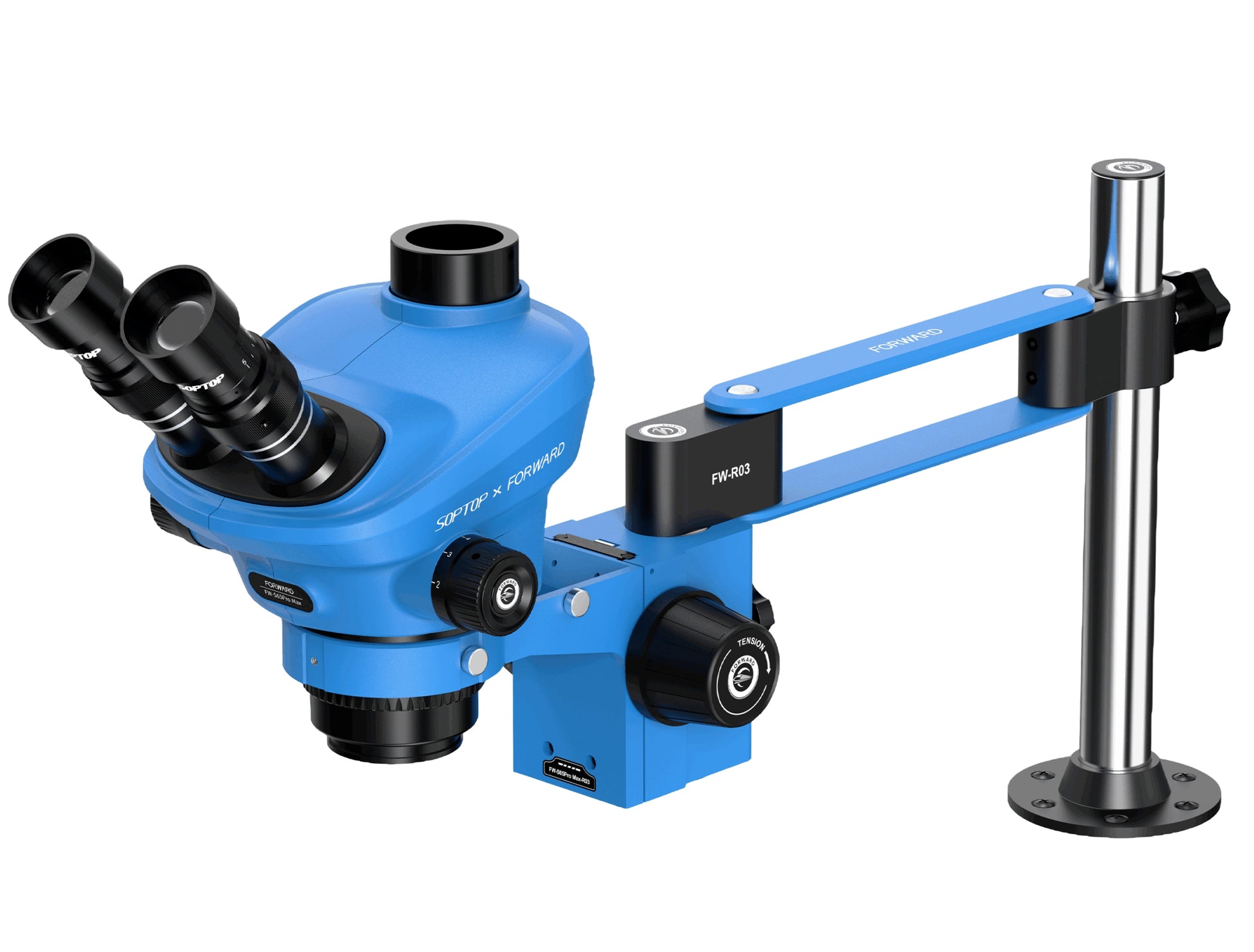

FW-R03 Articulated Robotic Arm for Maximum Ergonomics
The revolutionary element of this kit is the FW-R03 articulated robotic arm, which redefines workspace organization.
Supported by a robust round column and a high-density flange-type base, firmly fixed to the desk with the included 6 special screws,
the entire mechanical assembly features a rigid rod and quick locking screws. This structural configuration allows positioning the microscope
at any angle and on any axis with remarkable fluidity, offering the technician total freedom of movement during delicate operations
and the possibility to completely free up workspace when the microscope is not in use.
Features:
- Optical unit: S65Pro Max model with clear and three-dimensional rendering
- Visual adjustment: Eyepieces adjustable for diopters and interpupillary distance
- Optical protection: Special anti-reflection eyecups (anti-light leakage) and anti-dust glasses
- Lighting system: ML138 adjustable LED ring (cool, uniform light without shadows)
- Light control: Dedicated intensity dimmer (Light Dimmer) with included power adapter
- Support and ergonomics: FW-R03 articulated robotic arm with smooth movement on multiple axes
- Mounting and stability: Rigid round column with ultra-secure desk mounting via flange-type base
- Digital connectivity: Built-in 0.4x CTV optical adapter (allows mounting a dedicated video camera for external monitor)
- Usage: Professional, designed for intensive use without causing eye fatigue
Package contents:
- Forward FW-S65Pro Max-R03 Microscope
- 2 x Optical eyepieces: Adjustable eyepieces
- 2 x Eye protection: Eye shields
- Environmental protection: Anti-dust protective glasses
- 2 x Anti-reflection and light leakage eyecups
- Support element: Mounting bracket
- Lighting system: Adjustable LED ring light model ML138
- Power supply: Dedicated power adapter
- Light control: Intensity dimmer / Light Dimmer
- Mechanical arm unit: Main articulated robotic arm FW-R03
- Support structure: Round support column
- Height adjustment: Locking knob/button for column
- Desk mounting: Durable flange-type base
- Base mounting: 6 x Special screws for flange fixing
- Arm adjustment: Star-head screw for mechanical locking
- Connection rod: Microscope mounting rod
- Video interface: 0.4 CTV optical adapter for camera mounting
- Documentation: User manual and instructions
